Products Detail
Product:Pressed Collar Saddles for Ventilation System
Material:galvanized steel or stainless steel
Diameter:R100-200mm or customized
Thickness:0.4-1.5mm
Method: stamping,seamless or welded
Application: HAVC duct system,air ducting device,chemicals,cement industries, ship builders, paper industries,pumps,petrochemicals etc

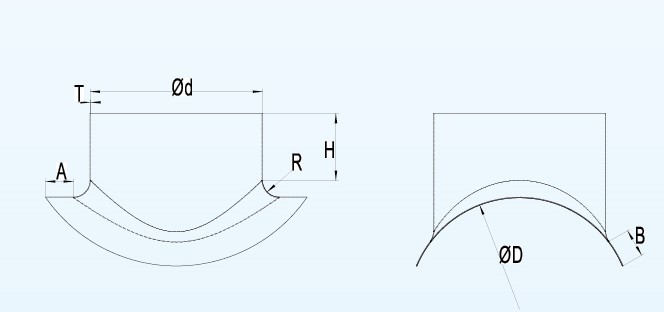

Product Specification：
|
Size mm |
CODE |
A=B mm |
B mm |
D mm |
d mm |
T mm |
R mm |
| 100-100 | PS100100 | 20 | 20 | 100 | 98.8 |
0.5 |
12 |
| 125-100 | PS125100 | 20 | 20 | 125 | 98.8 | 0.5 | 12 |
| 160-100 | PS160100 | 20 | 20 | 160 | 98.8 | 0.5 | 12 |
| 200-100 | PS200100 | 20 | 20 | 200 | 98.8 |
0.5 |
12 |
| 250-100 | PS250100 | 20 | 20 | 250 | 98.8 | 0.5 | 12 |
| 125-125 | PS125125 | 20 | 20 | 125 | 123.8 | 0.5 | 12 |
| 160-125 | PS160125 | 20 | 20 | 160 | 123.8 | 0.5 | 12 |
| 200-125 | PS200125 | 20 | 20 | 200 | 123.8 | 0.5 | 12 |
| 250-125 | PS250125 | 20 | 20 | 250 | 123.8 | 0.5 | 12 |
| 160-160 | PS160160 | 20 | 20 | 160 | 158.7 | 0.5 | 16 |
| 200-160 | PS200160 | 20 | 20 | 200 | 158.7 | 0.5 | 16 |
| 250-160 | PS250160 | 20 | 20 | 250 | 158.7 | 0.5 | 16 |
| 315-100 | PS315100 | 20 | 20 | 315 | 98.8 | 0.5 | 12 |
| 315-125 | PS315125 | 20 | 20 | 315 | 123.8 | 0.5 | 12 |
| 315-160 | PS315160 | 20 | 20 | 315 | 158.7 | 0.5 | 16 |
| 315-200 | PS315200 | 20 | 20 | 315 | 198.6 | 0.5 | 18 |
