Product: Manual Sliding damper
Material: stainless steel, galvanized steel, aluminum alloy and carbon steel
Application: sliding damper is used in the dust removal piping system,which can effectively transmit industrial dust and waste gas, and also apply to me the mill of flour mill to collect the waste generated from production, so as to prevent pollution.
Feature: simple structure, flexible operation, light weight, no blocking, fast cutting, especially suitable for all kinds of non-viscosity solid, powder particle material, grain material transport and flow regulation, installation is not limited by the Angle, easy operation, can adjust the opening at any time.

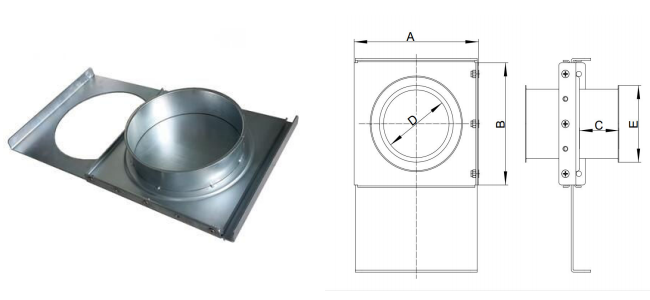

Product Specification
|
φD mm |
CODE |
A mm |
B mm |
C mm |
D mm |
E mm |
Damper plate thickness(mm) |
Damper house thickness(mm) |
| 80 | SD80 | 170 | 160 | 60 | 80 | 93 | 2 | 1.5 |
| 100 | SD100 | 190 | 180 | 60 | 100 | 113 | 2 | 1.5 |
| 125 | SD125 | 215 | 205 | 60 | 125 | 138 | 2 | 1.5 |
| 150 | SD150 | 240 | 230 | 60 | 150 | 163 | 2 | 1.5 |
| 160 | SD160 | 250 | 240 | 60 | 160 | 173 | 2 | 1.5 |
| 180 | SD180 | 270 | 260 | 60 | 180 | 193 | 2 | 1.5 |
| 200 | SD200 | 290 | 280 | 60 | 200 | 213 | 2 | 1.5 |
| 225 | SD225 | 315 | 305 | 60 | 225 | 238 | 3 | 2 |
| 250 | SD250 | 340 | 330 | 60 | 250 | 263 | 3 | 2 |
| 275 | SD275 | 365 | 355 | 60 | 275 | 288 | 3 | 2 |
| 300 | SD300 | 390 | 380 | 60 | 300 | 313 | 3 | 2 |
