Straight Pipe With Flange
hiddenValue
- Description
-
Product：Straight Pipe With Flange
Material: Hot dipped galvanize,stainless steel
Duct Application:
1,It is mainly applied to ventilation, purification,smoke prevention and exhaustion system in open or widen space.
2,Our products are used in the dust removal piping system,which can effectively transmit industrial dust and waste gas and also apply to the mill or flour mill to collect the waste generated from production, so as to prevent pollution.
3,The products are also used in ventilation system and transportation systems.
Duct Feature:
1, High quality on material , long service life
2,Saving material
3, Least resistance, good tightness
4, Joint seaming
5, Linking by high quanlity steel flange
6,Seal strip is used on the connector
7.Less air Leakage, reduce energy consumption, save operating cost

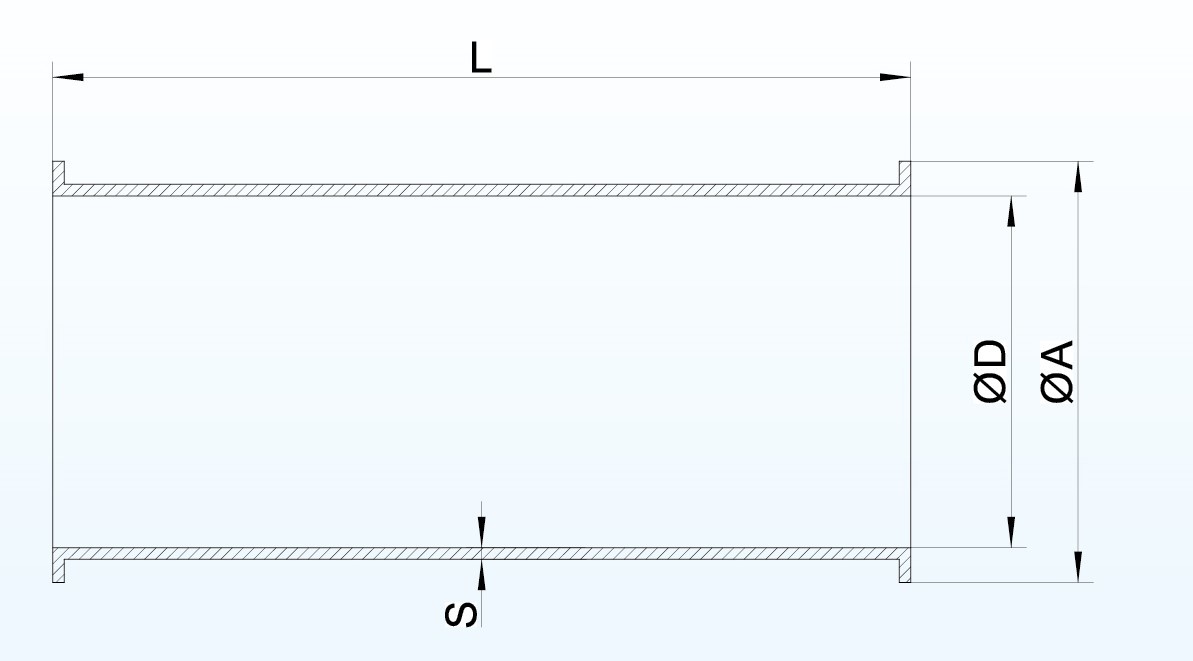

Product Specification：
φD
mm
PRODUCT CODE A
mm
S
mm
L=0.5mm L=1.0mm L=1.5mm 100 YG10005 YG10010 YG10015 113 0.8 125 YG12505 YG12510 YG12515 138 0.8 140 YG14005 YG14010 YG14015 153 0.8 150 YG15005 YG15010 YG15015 163 0.8 160 YG16005 YG16010 YG16015 173 0.8 180 YG18005 YG18010 YG18015 193 0.8 200 YG20005 YG20010 YG20015 213 0.8 225 YG22505 YG22510 YG22515 238 0.8 250 YG25005 YG25010 YG25015 263 0.8 275 YG27505 YG27510 YG27515 288 0.8 300 YG30005 YG30010 YG30015 313 0.8 315 YG31505 YG31510 YG31515 328 0.8 350 YG35005 YG35010 YG35015 363 0.8 400 YG40005 YG40010 YG40015 413 1.0 450 YG45005 YG45010 YG45015 463 1.0 500 YG50005 YG50010 YG50015 513 1.0 550 YG55005 YG55010 YG55015 563 1.0 600 YG60005 YG60010 YG60015 613 1.0 650 YG65005 YG65010 YG65015 663 1.0 700 YG70005 YG70010 YG70015 713 1.0 750 YG75005 YG75010 YG75015 763 1.0 800 YG80005 YG80010 YG80015 813
1.0 850 YG85005 YG85010 YG85015 863 1.0 900 YG90005 YG90010 YG90015 913 1.0 950 YG95005 YG95010 YG95015 963 1.0 1000 YG100005 YG100010 YG100015 1013 1.0
Keywords:- duct collection fittings
